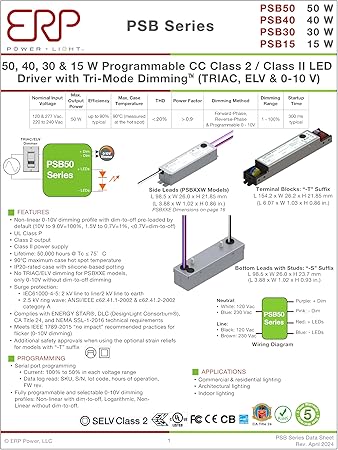

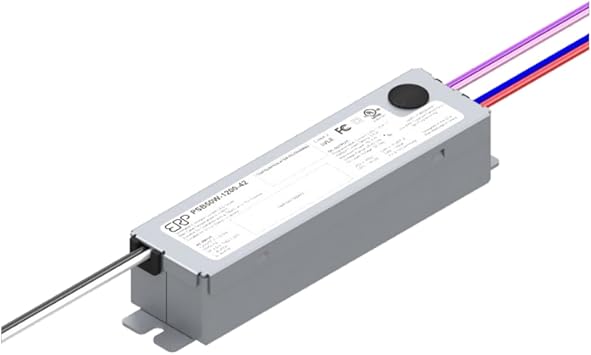

PSB30W-0700-42 Program CC LED Power Supply 29.4W 28-42V 350-700mA, Forward/Reverse-Phase & 0-10V Dim, 1-100% Dim Range, 90% eff, 120-277 Vac
Original price was: $45.00.$29.25Current price is: $29.25.
“Power your LED projects with the PSB30W-0700-42! Enjoy efficient dimming and reliable performance. Order now for optimal lighting solutions!”
51 in stock
Overview
| Model Name | PSB30W-0700-42 |
| Brand | LLS |
| Connector Type | 2-pin connector |
| Output Wattage | 29 Watts |
| Wattage | 29.4 watts |
| Cooling Method | Air |
| Item dimensions L x W x H | 3.88 x 1.02 x 0.86 inches |
| Maximum Input Voltage | 277 Volts (AC) |
| Minimum Input Voltage | 28 Volts (AC) |
| Manufacturer | LLS |
- Dimming and Profile: Non-linear 0-10V dimming profile with dim-to-off pre-loaded by default (10V to 9.0V=100%, 1.5V to 0.7V=1%, <0.7V=dim-to-off). No TRIAC/ELV dimming for PSBXXE models, only 0-10V without dim-to-off dimming.
- Certifications and Compliance: UL Class P, Class 2 output, Class II power supply. Complies with ENERGY STAR, DLC (DesignLight Consortium), CA Title 24, and NEMA SSL-1-2016 technical requirements. Meets IEEE 1789-2015 “no impact” recommended practices for flicker (0-10V dimming).
- Construction and Protection: IP20-rated case with silicone-based potting. Surge protection: IEC61000-4-5: 2 kV line to line/2 kV line to earth, 2.5 kV ring wave: ANSI/IEEE c62.41.1-2002 & c62.41.2-2002 category A.
- Performance and Durability: Lifetime of 50,000 hours at Tc ≤ 75°C, with a maximum case hot spot temperature of 90℃.
- Additional Safety Approvals: Additional safety approvals when using the optional strain reliefs for models with “-T” suffix.
